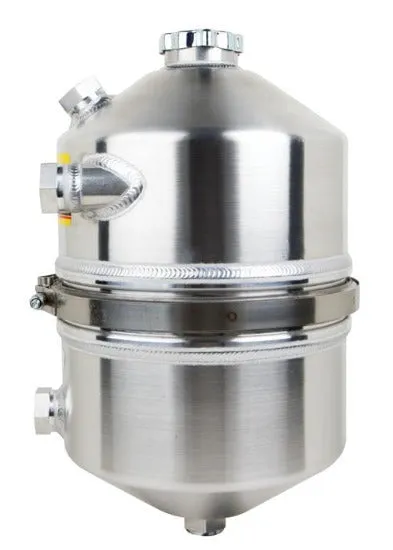

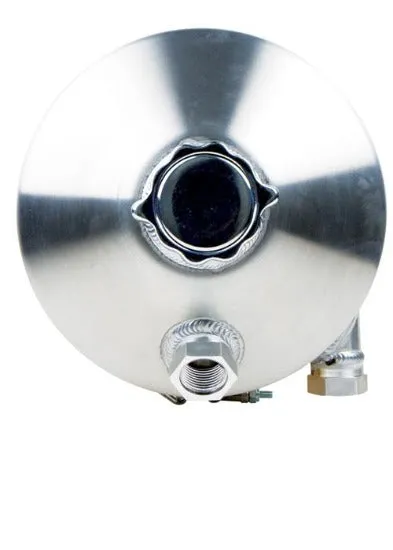

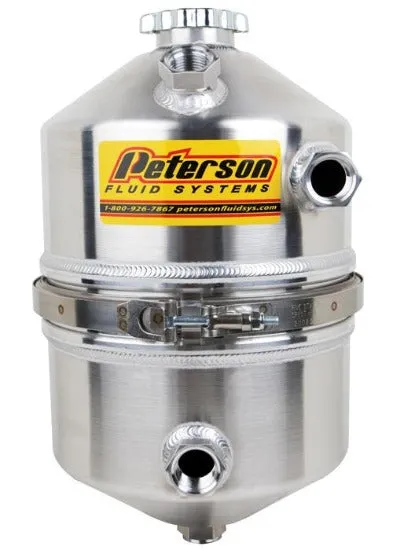

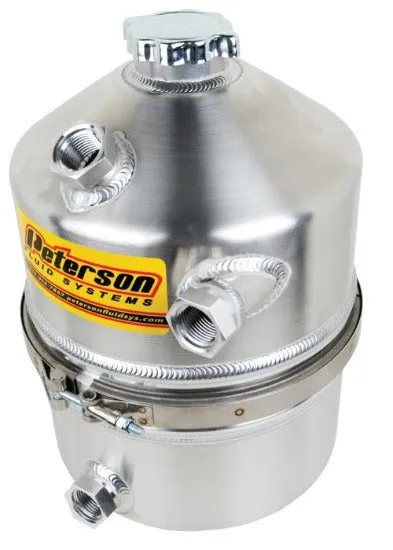

3 Gallon Oil Tank

Peterson oil tanks are the leader in tank technology. Manufactured using aircraft quality components, internal baffling provides excellent deaeration of the scavenge oil while maintaining a tall column of oil over the pickup. The tanks disassemble easily and the tank tops can rotate in relation to the bottoms for ease in fitting placement.

Features

All Aluminium construction for light weight
Built using high quality spinnings
Hand tig welded and pressure tested
Fully baffled inside for oil and air control
Heater bung available

Specifications

Height: 16" / 40.64cm
Diameter: 9" / 22.86cm

Part Numbers

Part #	Description
08-0009	3 Gallon Oil Tank Single Scavenge Inlet
08-0010	3 Gallon Oil Tank Dual Scavenge Inlet

Peterson oil tanks are the choice of top teams in racing around the world. We produce all of our tanks from our facility in Denver, CO and every one of them is inspected and tested before it leaves to ensure that it is up to our standards. We have produced tanks not only for teams in almost every major motorsport but also for special projects for top auto manufactures, as well as, hollywood films and military applications. We offer a line of standard tanks and some vehicle specific versions as well. We also produce custom tanks to exactly fit your application. Contact our sales team for more information

Accessories sold separately

Brackets

Part #	Description
08-0101	9" Flat Mount Tank Bracket Set
08-0106	9" Clamp Style Tank Bracket Set 1 1/2" Tube

Heaters

Part #	Description
08-0300	300 Watt Immersion Heater
08-0301	300 Watt 2"x15" Wrap Around Heater
08-0302	400 Watt 4"x10" Wrap Around Heater
08-1300	300 Watt Immersion Heater 220 Volt
08-1301	300 Watt 2"x15" Wrap Around Heater 220/240 Volt
08-1302	400 Watt 4"x10" Wrap Around Heater 220/240 Volt
